React调试

React Developer Tools

React Developer Tools是一个开源的Chrome开发者工具的插件,使用这个插件可以在浏览器中查看组件的层级、属性等信息。

使用步骤:

  • 添加Chrome插件
  • 添加完成后Chrome的开发者工具栏中会出现React标签,选中相应组件,左侧为组件层级结构,右侧可查看组件状态。
  • 点击选中左上角Trace React updates,可监控组件更新。

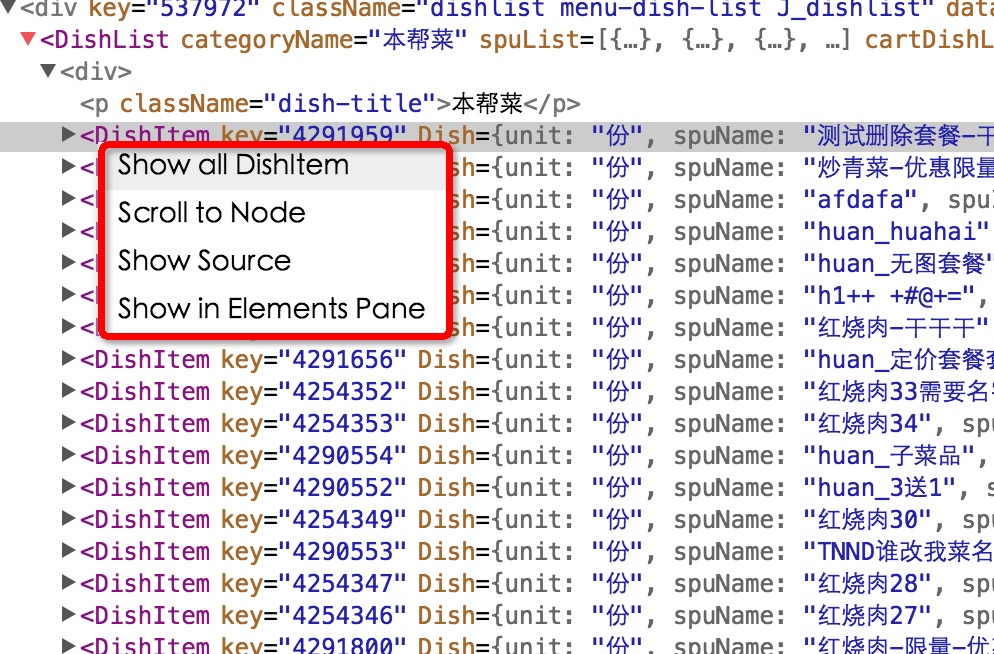

  • 选中某一组件右键,有4个选项

Show all **:单独显示所有选中同类组件;
Scroll to Node: 页面滚动到该组件;
Show Source:在Source面板中查看;
Show in Elements Pane: 在Elements中查看元素。

性能分析工具

Perf 更多工具列表

Redux调试

在采用React+Redux框架的项目中,页面中有复杂的action逻辑,React调试已经不能满足需要。

Redux Devtools

Redux Devtools是一个为Redux提供actions查看历史,撤销和重复的开发者工具。

使用方法:

  • 下载Chrome插件
  • 修改configureStore.js文件:
    export default function configureStore(initialState) {
      const store = createStore(reducer, initialState, compose(
        applyMiddleware(...middleware),
        window.devToolsExtension ? window.devToolsExtension() : f => f
      ));
      return store;
    }

    如果没有任何store enhancers和middlewares的话:
    export default function configureStore(initialState) {
      const store = createStore(reducer, initialState,
        window.devToolsExtension && window.devToolsExtension()
      );
      return store;
    }

  • 以上操作完毕后,打开Chrome,点击在开发者工具的中新增的Redux标签

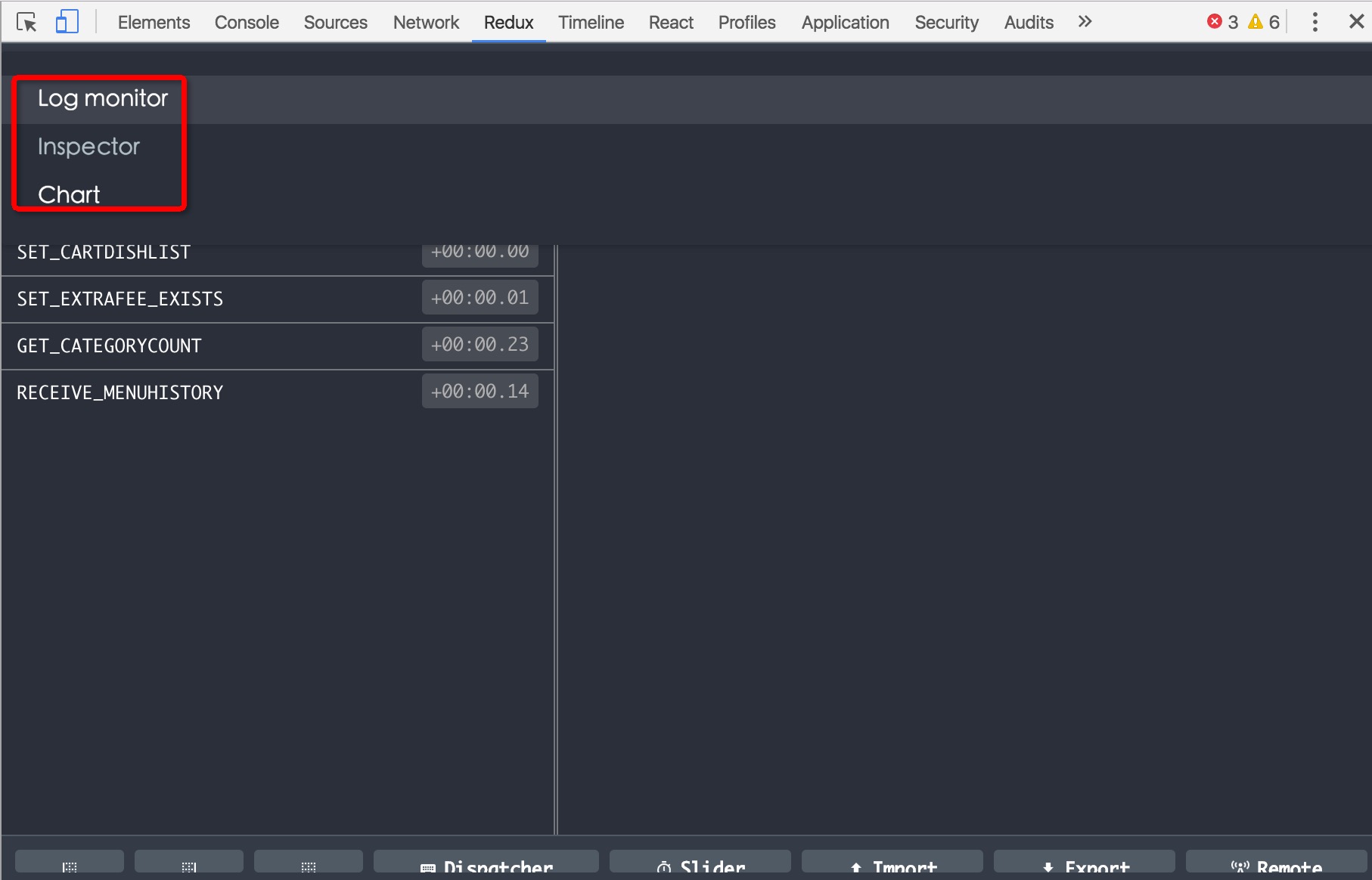

菜单中有3个选项:

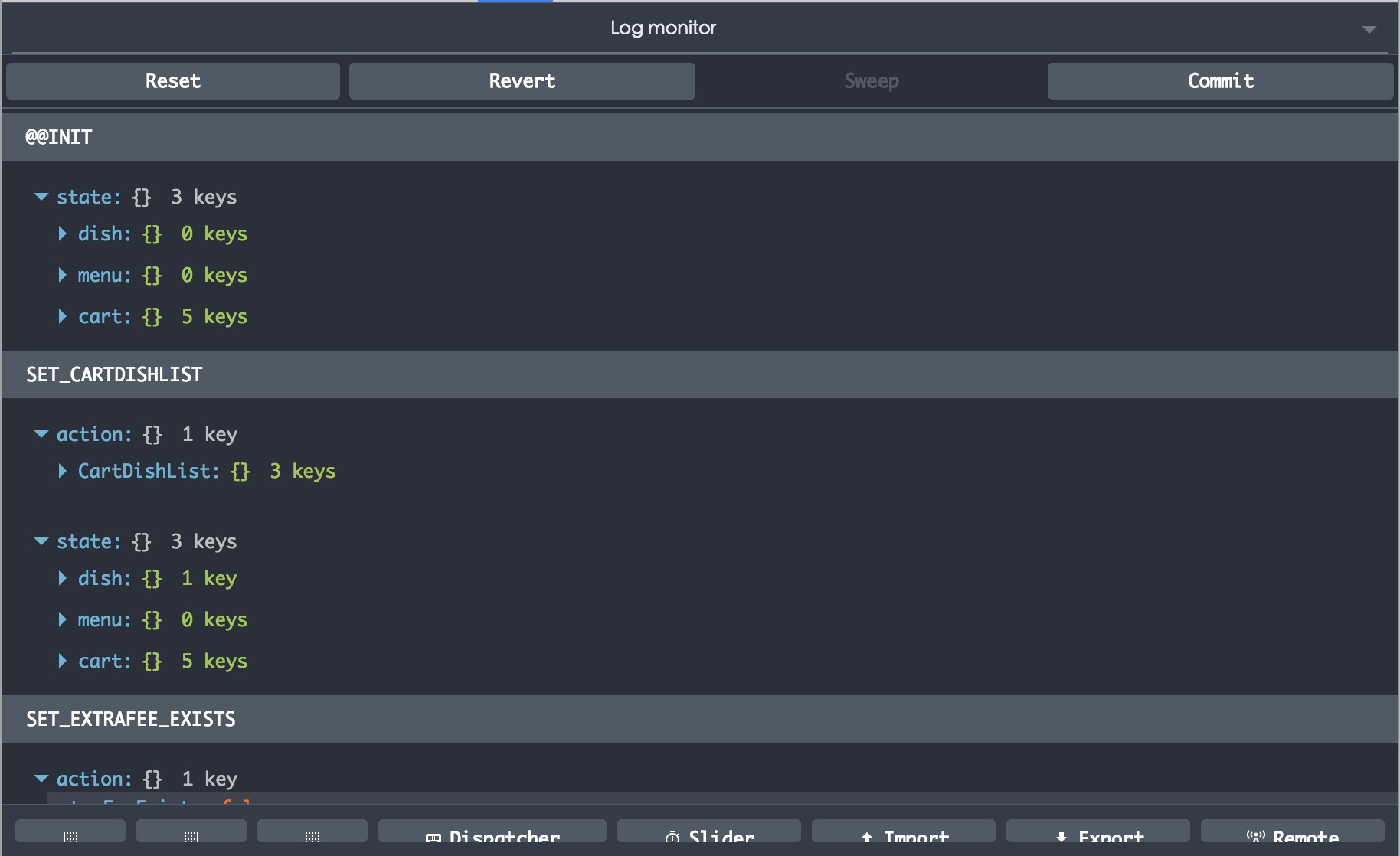

  • Log monitor(日志监控):

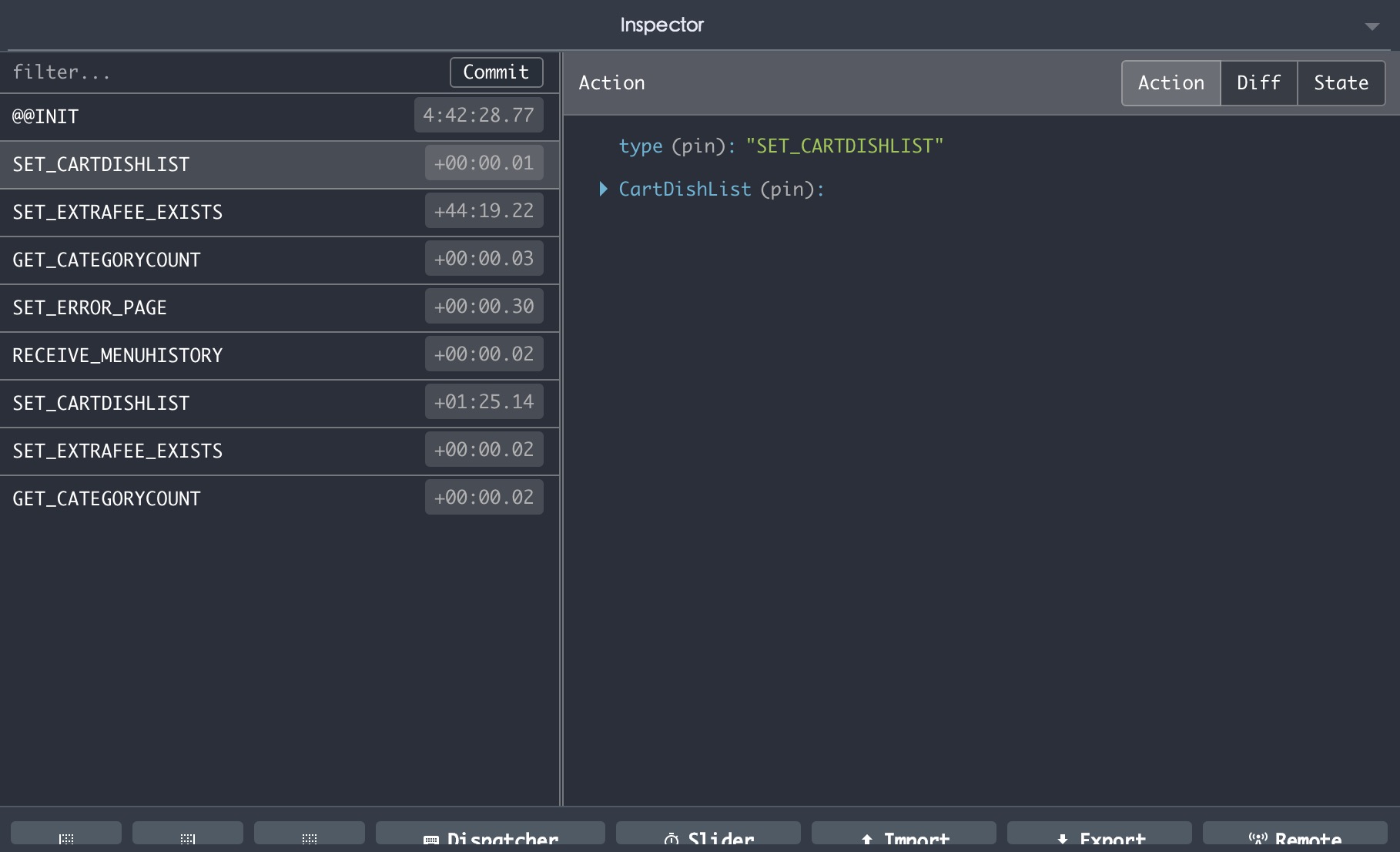

  • Inspector(查看):

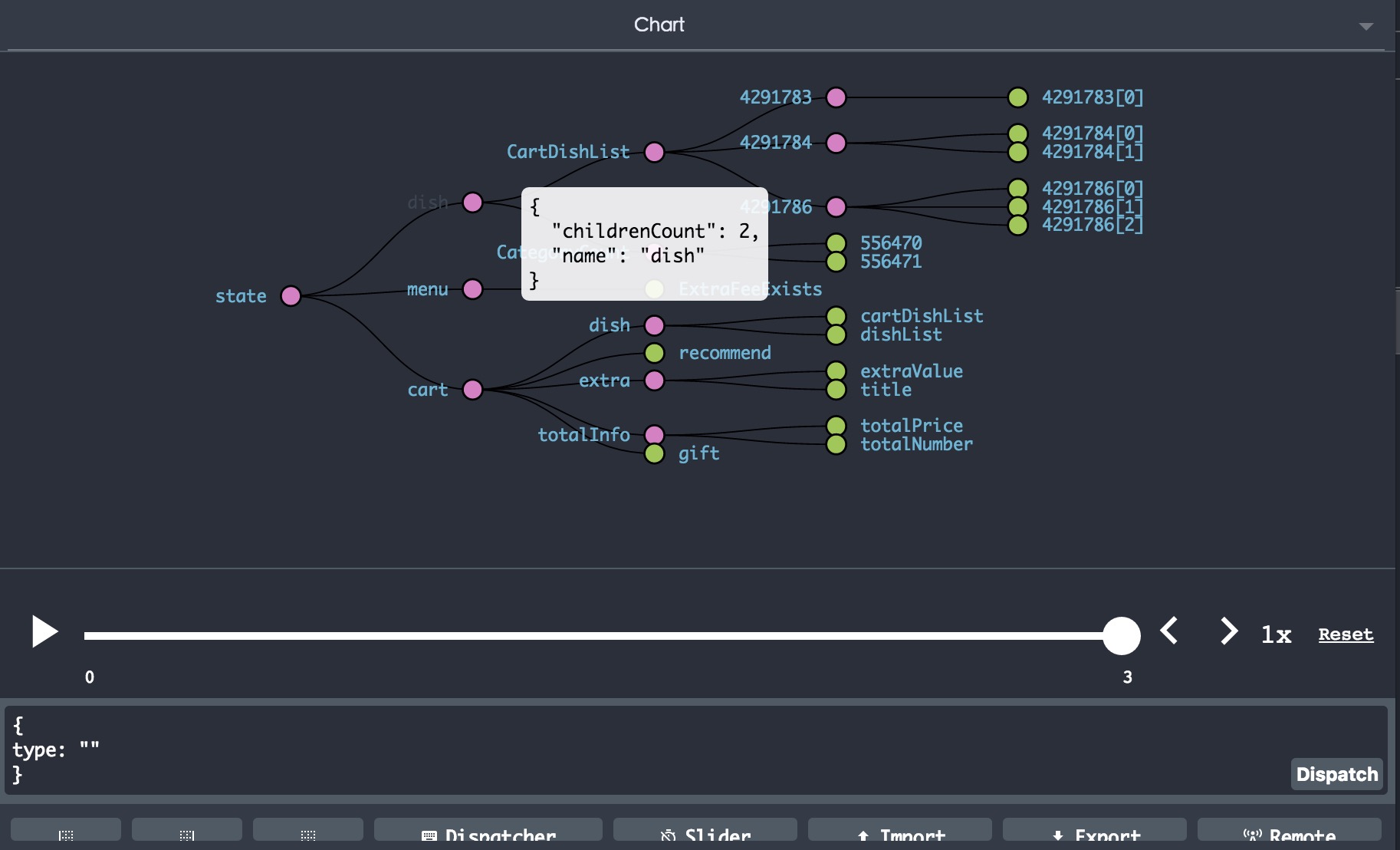

  • Chart(图标):以树状图表形式显示state的所有节点,鼠标移动到节点会展示具体信息。

Remote Redux DevTools
